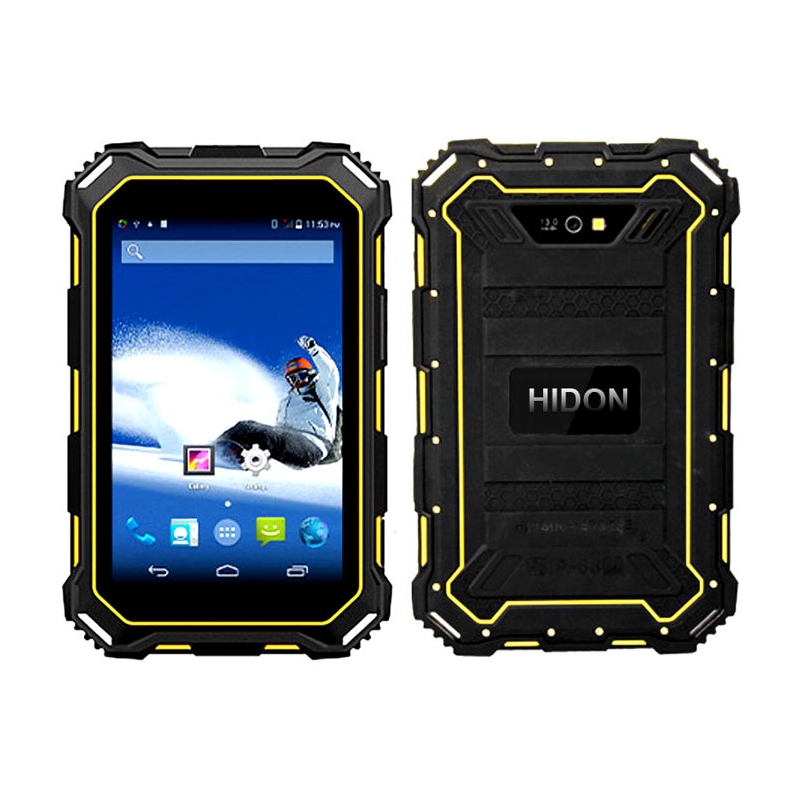

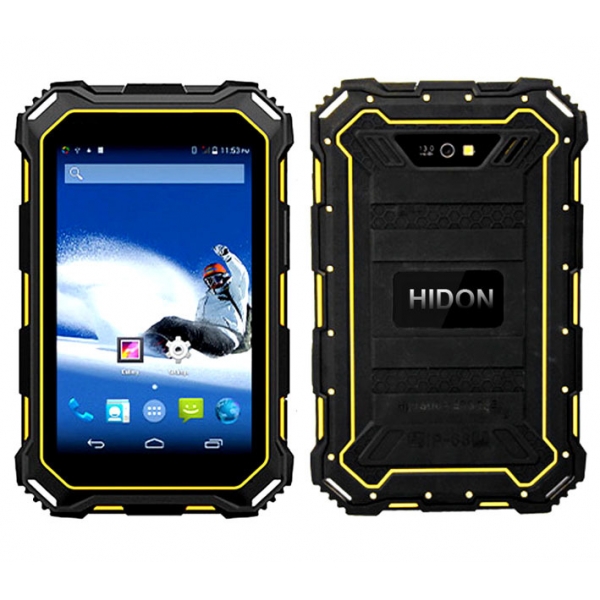

R701 IP68 Rugged tablet

Display: 7 inch IPS 800(H)X1280(V)
OS: Andriod 5.1 - 6.0-7.0-8.1-9.0 OS
CPU:MT8732VC Quad-core ,1.3HZ
Touch panel : 10-point touch capacitance screen / toughened glass TP
RAM : 2G LPDDRII
ROM :32GB (max 64GB)
Camera :8.0MP(AF)with flash led + 5.0MP
Battery: 7000  mAh Li-ion battery
WCDMA 850/2100 (850/1900 optional) GSM 850/900/1800/1900
Network : WIFI 802.11 b/g/n ,BT4.0
Navigation: GPS+AGPS+EPO / GPS+Beidou+AGPS
External Function : GPS ,Digital FM radio ,NFC
Reliability Design :IP68 Shake-proof / Dropproof / Waterproof / Dustproof
Inquire Now Prev Product
    Project Info Description Remark
    Name of project R701 Rugged Tablet
    Market Orientation Three-Prevention PAD
    Features 1.Tablet PC, IP67
    2.smartphone Android OS 4.4.4
    3. single SIM card,7.0"HD capacity touch panel
    General Info Description Remark
    Spec
    Appearance Candy Bar Type
    Dimension 215.56*135.8*18.9 mm
    Weight 628g
    Hardware Info Description Remark
    MTK Chipset MT8732VC Quad-core ,1.3HZ
    Screen 7.0" HD  IPS
    Resolution 800(H)X1280(V)
    Touch panel CTP  (G+ G)
    SIM card slot  Dual sim card slot
    2G频率 2,3,5,8
    WCDMA B1,B2,B3,B8
    TDS Band34,39
    TDD Band38,39,40,41
    FDD B1,B3,B7
    Memory
    ROM 8G/16G
    RAM 1G/2G
    Camera
    Front camera 200W
    Back camera 1300W
    Data communication
    Bluetooth Yes4.0(MTK  Four in one)
    Wifi Yes   IEEE 802.11 b/g/n
    NFC Yes
    FM Yes
    USB disk Yes
    Memoriy Card Micro-SDUp to 32G,
    Sensor
    G-sensor Yes
    Three axis gyroscope Yes
    The distance/light sensor Yes
    Geomagnetic sensor Yes
    other
    GPS Yes
    AGPS Yes
    BDS 0ptional
    Touch Shared with flashlight
    Loudspeaker Class K power amplifier φ23Loudspeaker
    Keypad
    Function Key 3 keys : menu key, back key, home key,
    Side Key 3 keys: 2 volume key, power key, camera key,  Reset key
    Battery
    Capacity   7000  mAh Li-ion battery
    Interface
    USB  YesMicro USB   5pin
    Earphone Yes3.5mm
    Charger Yes, Same as USB port
    OTG support mouse support keyboard
    Language
    Default Yes  Multinational
    Call Function
    Scene Yes
    Multimedia
    Media Player(MP3MP4) Yes
    Network application Local search,3W browser,Weather forecast,Google search,Google Map,Navigation,G-mail,Market,Google Talk,Adobe flash player
    VPN Yes
    recording Yes
    Stereo headset Yes
    HEVC decoder 1080p@30fps                                         H264 decoder:Baseline 1080p@30Fps/40Mbps
    H264 decoder:Main/high profile 1080p@30Fps/40Mbps
    Sorenson H.263/H.263 decoder:1080p@30Fps/40Mbps
    MPEG-4 SP/ASP decoder:1080p@30Fps/40Mbps
    DIVX4/DIVX5/DIVX6/DIVXHD/XVID decoder:1080p@30Fps/40Mbps
    MPEG-4 encoder:Simple profile D1@30fps
    H.263 encoder:Simple profile D1@30fps
    H264 ecoder:high profile 1080p@30Fps
    HEVC encoder:Main profile 720p@30fps
    MP3,MIDI,AMR,AAC,
    Audio content sampling rates supported:8kHZ to 192kHz
      __Audio content sample formats supported: 8-bit/16-bit/24-bit, Mono/Stereo
     __Interfaces supported: I2S, PCM
      __ External CODEC I2S interfaces supports 16-bit/24-bit, Mono/Stereo, 8KHZ to 192KHZ.
     __ 4-band IIR compensation filter to enhance loudspeaker responses
     __ Proprietary audio post-processing technologies: BesLoudness (MB-DRC), BesSurround, Androrid built-in post processing
     __Audio encoding: AMR-NB, AMR-WB, ACC, OGG, ADPCM
     __Audio decoding: WAV, MP3, MP2, AAC, AMR-NB, AMR-WB, MIDI, Vorbis, APE, AAC-plus v1, AAC-plus v2, FLAC, WMA, ADPCM
     — Voice wakeup
    Yes
